| System parameters | ||
|---|---|---|
| System pressure | 60 | bar |
| System flow | 40 | L/min |
| Motor parameters | ||
| Power | 3.75 | kw |
| Number of revolutions | 1450 | r/min |
| Voltage | 380 | v |
| Frequency | 50 | Hz |
| Fuel tank parameters | ||
| Volume | 140 | L |
| Material | Q235 | |
| Surface treatment | Spray | |
| Feature | |
|---|---|

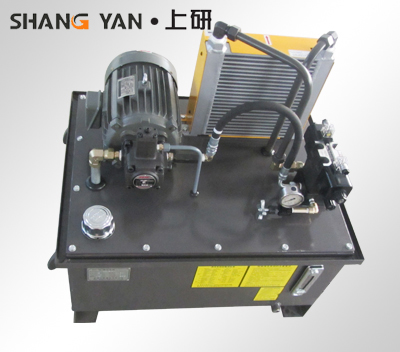

| 1. | The imported variable vane pump is used together with the inner shaft motor, which greatly saves installation space |
| 2. | Air cooler is used to reduce temperature rise, stabilize system temperature and provide efficient power |
| 3. | Non-standard design and manufacturing can be carried out according to users and working conditions, while providing integrated electrical and hydraulic control services |
| Application Industry application | |
|---|---|
| 1. | Welding equipment |
| 2. | Forming equipment |
| 3. | Automated production line |
