Mainly produce hydraulic systems and hydraulic components

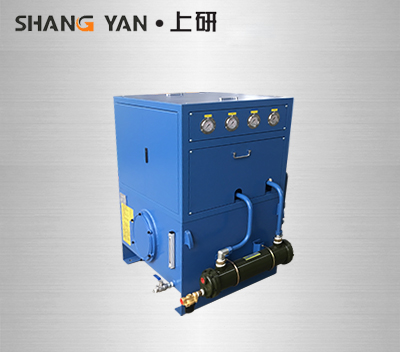

TW23101709

  • Technical Parameters
  • Type description
  • System characteristics
  • Industry Application
  • System parameters
    System pressure 80 bar
    System flow 58 L/min
    Motor parameters
    Power 7.5 kw
    Number of revolutions 1450 r/min
    Voltage 380 v
    Frequency 50 Hz
    Fuel tank parameters
    Volume 400 L
    Material Q235
    Surface treatment Spray
  • Feature Feature
    1. The imported SSAN plunger pump is used together with the oil return water cooler, which greatly reduces the heat generation of the system.
    2. The motor adopts vertical installation and threaded cartridge valve, which is convenient for operation and use and improves production efficiency.
    3. Using laser cutting and bending technology to ensure the strength and beauty of the equipment.
  • Application Industry Application
    1. Chemical equipment, special machine tools.
